7U Height 144 Ports Fixed Optical Fiber Distribution Box Unit For SC Fiber Adapter

China 7U Height 144 Ports Fixed Optical Fiber Distribution Box Unit For SC Fiber Adapter supplier

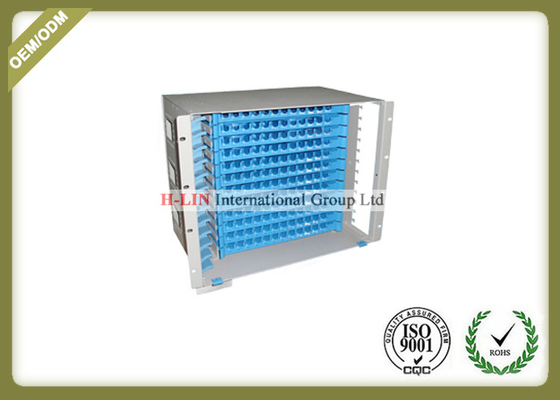

Large Image :  7U Height 144 Ports Fixed Optical Fiber Distribution Box Unit For SC Fiber Adapter

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-Lin
Certification: CE/FCC/ROHS
Model Number: HL-FODF-7U144SC

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: negotiable
Packaging Details: 1pcs a separate box
Delivery Time: 1week after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pieces/week
Contact Now
Detailed Product Description
Material: Cold-roll Steel Or Aluminum Painting Method: Electrostatic Painting
Color Painting: Black,White,Grey Or Customized Port: 12, 24, 36,48, 72 Or Customized
Dimension: 490x305x311.5 Adapter Plate: SC,FC,ST,LC For Option
Type: Rack-mouted Fixed Type
High Light:

fiber distribution unit

,

optical fiber distribution frame

Rack mount Fixed type Optical Distribution Frame  7U 144cores



Rack-mount fiber optic distribution frame is made of cold-rolled steel, modular design, with splice tray units inside and could be pre-installed with various kinds of fiber optic adapters and pigtails.



The proper design controls the bend radius of the cable inside the enclosure to avoid extra optical loss.



Features:



Type: Fiber Optic Unit


Patented material : unique plastic retainer clips



Modular design with splicing and distribution function


Front mark on the plate is easy for identification and operation


Various panel plate to fit different adapter interface


12 cores splice tray unit can storage max. 2m pigtail





Application:

• Telecommunications subscriber loop

• Fiber to the home (FTTH)

•  LAN/WAN

• CATV

Specification:

Model Core Count Height Dimension(mm) Weight(kg)
HL-FODF-7U144 144 7U 490x305x311.5 17.1
HL-FODF-5U96 96 5U 490x305x222.5 11
HL-FODF-4U72 72 4U 490x305x178 9
HL-FODF-3U48 48 3U 490x305x133.5 7
HL-FODF-2U36 36 2U 490x305x89 5.7
HL-FODF-2U24 24 2U 490x305x89 4.6



Packaging & Shipping:

7U Height 144 Ports Fixed Optical Fiber Distribution Box Unit For SC Fiber Adapter
