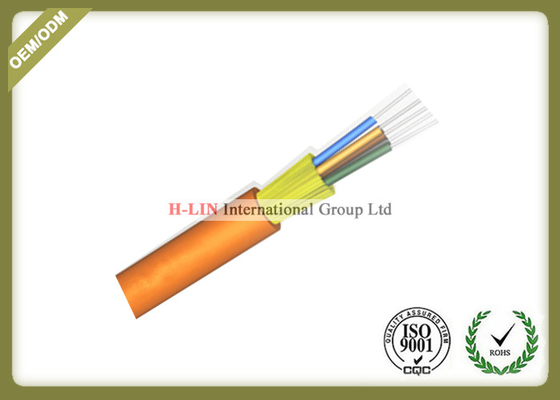

Indoor Distribution Fiber Optic Cable , Tight Buffered Fiber Optic Cable Multi Core

China Indoor Distribution Fiber Optic Cable , Tight Buffered Fiber Optic Cable Multi Core supplier
Indoor Distribution Fiber Optic Cable , Tight Buffered Fiber Optic Cable Multi Core supplier Indoor Distribution Fiber Optic Cable , Tight Buffered Fiber Optic Cable Multi Core supplier

Large Image :  Indoor Distribution Fiber Optic Cable , Tight Buffered Fiber Optic Cable Multi Core

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/FC/ROHS
Model Number: GJFJV(Y)

Payment & Shipping Terms:

Minimum Order Quantity: 1 km
Price: negotiable
Packaging Details: package as per customer's request
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Meter/Meters per Day
Contact Now
Detailed Product Description
Type: Indoor Distribution Optical Fiber Application: Telecommunications
Core Number: 2~48core Temperatuer: -20 Degree~+70 Degree
Jacket: PVC Or LSZH

Indoor Distribution fiber optic cable GJFJV(Y) for 2~48core with 0.9mm tight buffer





Product Description
Indoor cabling optical cable is applied to cabling in buildings and connection of network equipments. It has good performance of bending, flame retardant, higher transmission speed, clear and stable signal, good anti-interference, huge transmission flow.

Purchasing Risk
Many domestic small factories used inferior or waste optical fibers to imitate A-grade optical fibers, non-woven fabrics as water-blocking tapes, waste electric-wires and rubber slippers smashed as raw materials for the outer sheath of cable. Those inferior cables will cause many problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack and water seepage of the cable jacket, etc. For the recent years, there are many cases that many overseas customers who bought such inferior cables from China were frustrated to find that the cables can not be used after constructing. It’s not workable to return them to China as the Chinese government will levy high import duties on optical fiber cables. The customers cannot claim for any compensation and suffered huge losses.

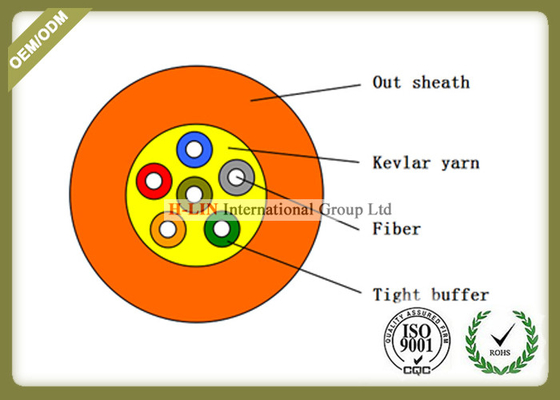

Distribution Tight Buffer Optical Cable use 2~24 core 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.
The tight buffer fiber wrapped with a layer of aramid yarn as strength member ,then completed with a layer of PVC or LSZH material as out jacket.



Characteristics



1. High strength aramid yarn strength member ensures high tensile strength

   and long term stable transmission for optical fibers.



2. Small outer diameter,lightweight,flame-retardant,easy to strip,low attenuation,highly soft



3. Direct splicing between tight buffered cables without the need of tie-in box or pigtail



4: suitable for installation,operation and convenient for maintenance.





Applications



1. AS building to building connecting cable

2. As indoor soft cable along the wall,ceiling,between layers and in conduits

3. As pigtails,movable connectors and patch cords for communication equipment

4: Used in indoor cabling,especially used as distribution cable



Temperature range

-20℃~+70℃





Standards



Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR.







Multi Core Fiber Optic Cable characteristics :



Fiber count Cable Diameter (mm) Cable Weight (kg/km)

Tensile (N)

Long/ Short term

Crush (N/100mm)

Long/ Short term

Min. Bend Radius (mm)

Dynamic/ Static

4 5.0 19.0 130/440 200/1000

20D/10D



6 5.2 23.0 130/440 200/1000
8 5.5 26.0 130/440 200/1000
12 6.5 36.5 200/660 200/1000
16 7.5 44.5 200/660 200/1000
24 8.2 54.5 200/660 200/1000

Note: 1. The min. bend radius (static) is 5D when G657 fiber is used.

2. Range of temperature: -40~+70°C

3. D is outer diameter of the round cable

4. Tight-buffered fiber is 0.9mm







Indoor Distribution Fiber Optic Cable , Tight Buffered Fiber Optic Cable Multi Core



Note:Singlemode fiber cable with yellow color jacket,multimode fiber cable with orange color jacket,or can be customerized.



Packing:



Indoor Distribution Fiber Optic Cable , Tight Buffered Fiber Optic Cable Multi Core
