FTTH Embedded SC Cold Junction Field Assembly Type SC APC Fast Connector 52mm for 3.0*2.0mm cable

China FTTH Embedded SC Cold Junction  Field Assembly Type SC APC Fast Connector 52mm for 3.0*2.0mm cable supplier
FTTH Embedded SC Cold Junction  Field Assembly Type SC APC Fast Connector 52mm for 3.0*2.0mm cable supplier FTTH Embedded SC Cold Junction  Field Assembly Type SC APC Fast Connector 52mm for 3.0*2.0mm cable supplier FTTH Embedded SC Cold Junction  Field Assembly Type SC APC Fast Connector 52mm for 3.0*2.0mm cable supplier

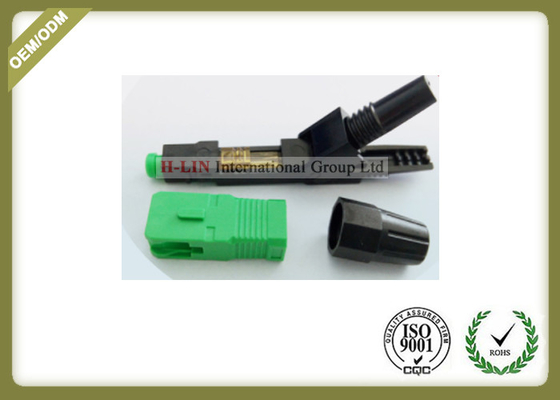

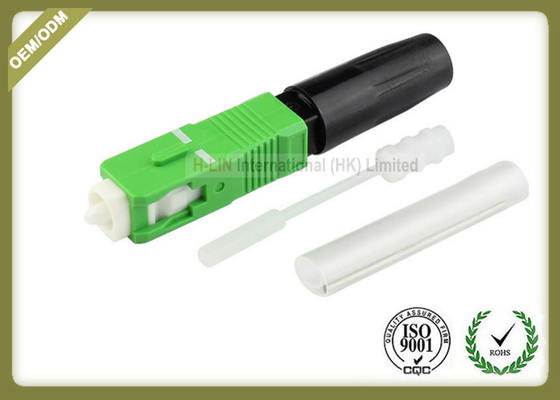

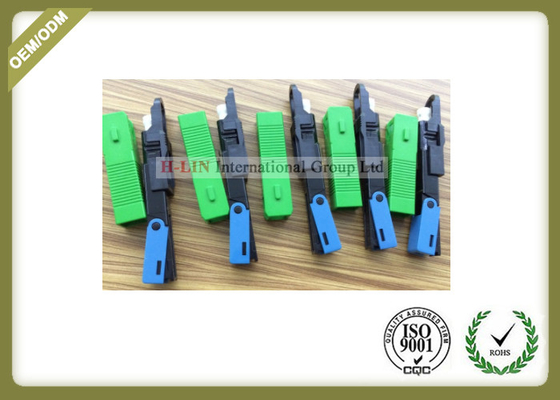

Large Image :  FTTH Embedded SC Cold Junction Field Assembly Type SC APC Fast Connector 52mm for 3.0*2.0mm cable

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/FCC/ROHS
Model Number: SC APC SM

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: negotiable
Packaging Details: plastic bag
Delivery Time: 4days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Material: Plastic Coating Diameter: 250
Fiber Diameter: 125 Temperature: -40°C To 85°C
Fiber Type: 3mm Drop Cable, 3.0x2mm Flat Cable Fiber Mode: Singlemode

Fast Connector(SC-APC) field assembly fiber optical connector(Pre-embedded)


Detailed Description:

FAST Connectors are factory pre-polished, field installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.

FAST Connectors are compatible with 2m, 3mm, and 2.0 * 3.0mm cordage. Each connector is color coded per industry-standard requirements to aide in identification during and after installation.


The cold-welded hot-melt type fast connector is the same as the fiber-optic weld, but its weld point is inside the end of the connector, which is equivalent to the hot-melt to save the tail cable of the tail fiber. Compared with the mechanical fast connector, the utility model fast connector can improve the service life of the relay contacts and reduce the maintenance cost. We cooperate with Keelung, the first manufacturer of fiber-optic splicing machine in China, and apply KL-300F to the design of fast hot-melt fiber-to-home FTTH splicing connector according to the characteristics of KL-300F, thus saving V-groove mechanical connector maintenance, construction costs, and durability, overturning the usually expensive splicing machine and not suitable for FTTH construction. Concept.



Features:

Fast and convenient, high quality and reliable.
The insertion loss is low and the return loss is good.
High tensile force and low cost.


Application:

Distribution frames
Maintenance or emergency restoration of fiber networks
FTTH Outlets
Patch panels

Fiber optic fast connector has been widely used in fiber transmission lines, fiber optic wiring frames and fiber optic testing instruments, instrumentation, is the most used number of optical passive devices.


Specification:


ItemParameter
Cable Scope3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter125μm ( 652 & 657 )
Coating Diameter250μm
ModeSM
Operation Timeabout 15s(exclude fiber presetting)
Insertion Loss≤ 0.3dB(1310nm & 1550nm)
Return Loss≤ 55dB
Success Rate>98%
Reusable Times>10 times
Tensile Strength>5 N
Tighten Strength of Coating>10 N
Temperature-40~+85°C
On-line Tensile Strength Test (20 N)IL ≤ 0.3dB
Mechanical Durability(500 times)IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)IL ≤ 0.3dB



FTTH Embedded SC Cold Junction  Field Assembly Type SC APC Fast Connector 52mm for 3.0*2.0mm cable
