Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter

China Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter supplier
Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter supplier Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter supplier Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter supplier Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter supplier Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter supplier

Large Image :  Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-Lin
Certification: ISO9001
Model Number: FC tool kit

Payment & Shipping Terms:

Minimum Order Quantity: 2 Piece/Pieces
Price: negotiable
Packaging Details: By carton
Delivery Time: 1-3 days after payment
Payment Terms: T/T, Western Union
Supply Ability: 100 Piece/Pieces per Week
Contact Now
Detailed Product Description
Product Name: Ftth Tool Kit Item 1: Optical Power Meter 5km
Item 2: 5km Optical Pen Item 3: Fc-6s Fiber Cleaver
Item 4: Double Mouth Miller Pilers Item 5: Wire Stripper
Item 6: Squeezed Type Alcohol Bottle Item 7: Fixed Length Device/Guide Bar
Item 8: Wire Stripper Item 9: Black Carry Bag



Full set FTTH fiber optic splicing tools kit with fiber optic cleaver FC-6S and Optical Power Meter



Product description



This ftth tool kit include following items:



1 x Optical Power Meter
1 x Fiber Cleaver FC-6S
1 x Miller pilers
1 x Fiber Optic Stripper/Model: CFS-2
1 x Red Laser Pointed VFL
1 x Fixed length device
1 x Black Carry Bag
1 x Guide bar
1 x Alcohol Bump Bottle
1 x Wire Stripper

Details Introduction

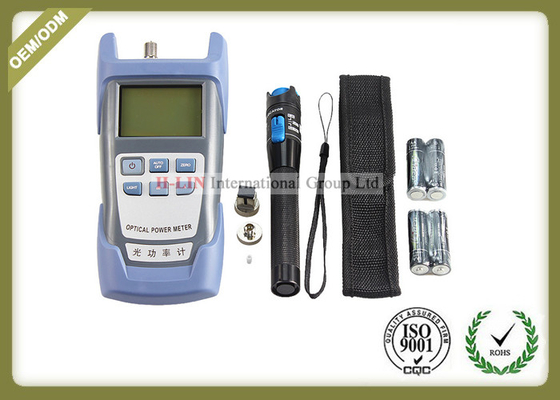

optical power meter 5km




  • Calibration wavelength: 800 ~ 1700nm
  • Measuring range: -70 ~ +3dBm
  • Linearity: 0.01dB
  • Display resolution: 0.01dB
  • Wave ID: 850, 980, 1300, 1310, 1490, 1550, 1625 nm
  • Power Adapter: 9V/1000mA
  • Working time: 40h
  • Working temperature: -10 ~ 60 centigrade
  • Storage temperature: -25 ~ 70 Celsius
  • Power Supply: 3 x AA Battery (Not Included)



Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter



optical pen 5km:

  • Imported laser head, High thermal conductivity
  • Aluninum alloy case, good durability
  • the ceramic die can be replaced

Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter

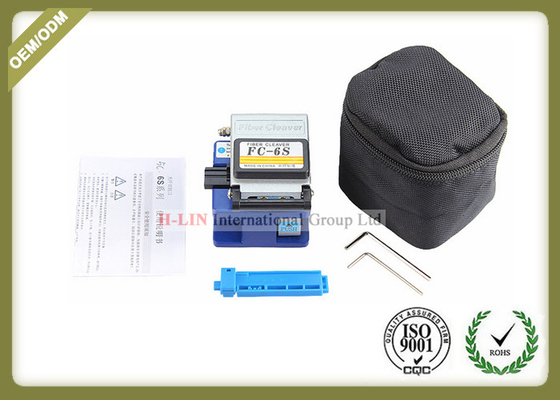

FC-6S Fiber cleaver:



  • Fiber diameter: 125um
  • Coating diameter: 250um – 900um
  • Typical splitter angle: 0.5 degrees
  • Adjust the peeling length is: 5~20mm
  • Length of the slit: 10mm
  • Blade Lifetime: 36,000 columns (3,000 per blade position)

Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter

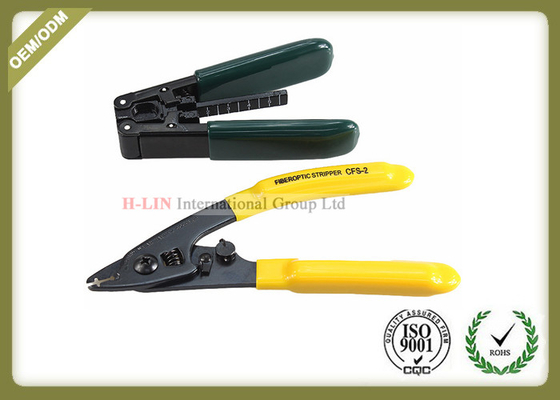

Double mouth Miller Pliers



  • 250 um coated layer of 125 um fiber with A.
  • Opening the top of the B. 1.98mm can be used for stripping fiber outer sheath
  • The open hole of the type V and 140 um on the edge of the
  • Clamp can be used to strip the 250 um layer of 125 um fiber
  • Jaw factory has been adjusted, shall not be adjusted
  • Will not damage the fiber
  • A ll the cutting cross section has precise mechanical tolerances to ensure a clean and smooth operation
  • According to the handle ergonomic design, comfort grip
  • Does not use the blade, locked in a closed state

Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter




Wire stripper



  • The use of temperature is -20 ° C ~ 50 °C
  • Factory pre-set, no need to adjust this stripper again to prevent fiber scratch; cutting blade precision positioning, quenching and tempering treatment, anti-rust primer.
  • If not use, set the blade lock in the closed state.
  • For stripping 250 micron buffer coating to expose 125 micron cladded fiber
  • Second hole for stripping 2-3mm fiber jackets
  • 140 μm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
  • Pre-set at the factory – no adjustments needed
  • Will not scratch or nick glass fiber
  • All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips Comfort-grip, ergonomic handles



Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter

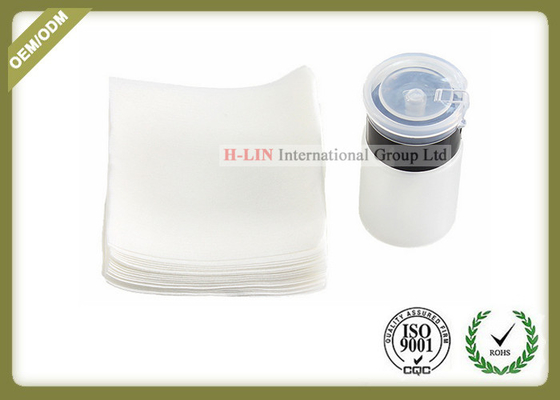

Squeezed type alcohol bottle and other Accessories



Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter

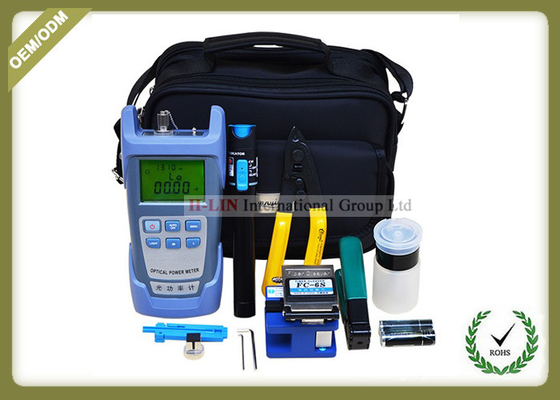

FUll Set



Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter

Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter
